LT8711SXE — Type-C/DP1.4 to Type-C/DP1.4/HDMI2.0 Converterwith Audio
1. General Description
The LT8711SXE is a high performance Type-C/DP1.4 to Type-C/DP1.4/HDMI2.0/DP++ converter, with audio output interface. Also, three CC controllers are included for CC communication to implement DP Alt Mode and power delivery function. On-chip USB3.2 Gen1 switch is a high-speed bi-directional switch which provides flexible switching to accommodate connector flipping.
Digital audio output interfaces are available, including I2S/TDM/SPDIF.
The device is capable of automatic operation which is enabled by an integrated microprocessor that uses an embedded SPI flash for firmware storage. System control is also available through the use of a dedicated configuration I2C slave interface.
2. Features
• USB Type-C
• DP1.4a/eDP1.5 Receiver
• DP/DP++/HDMI Combo Transmitters
• Digital Audio Output
• DSC Decoder

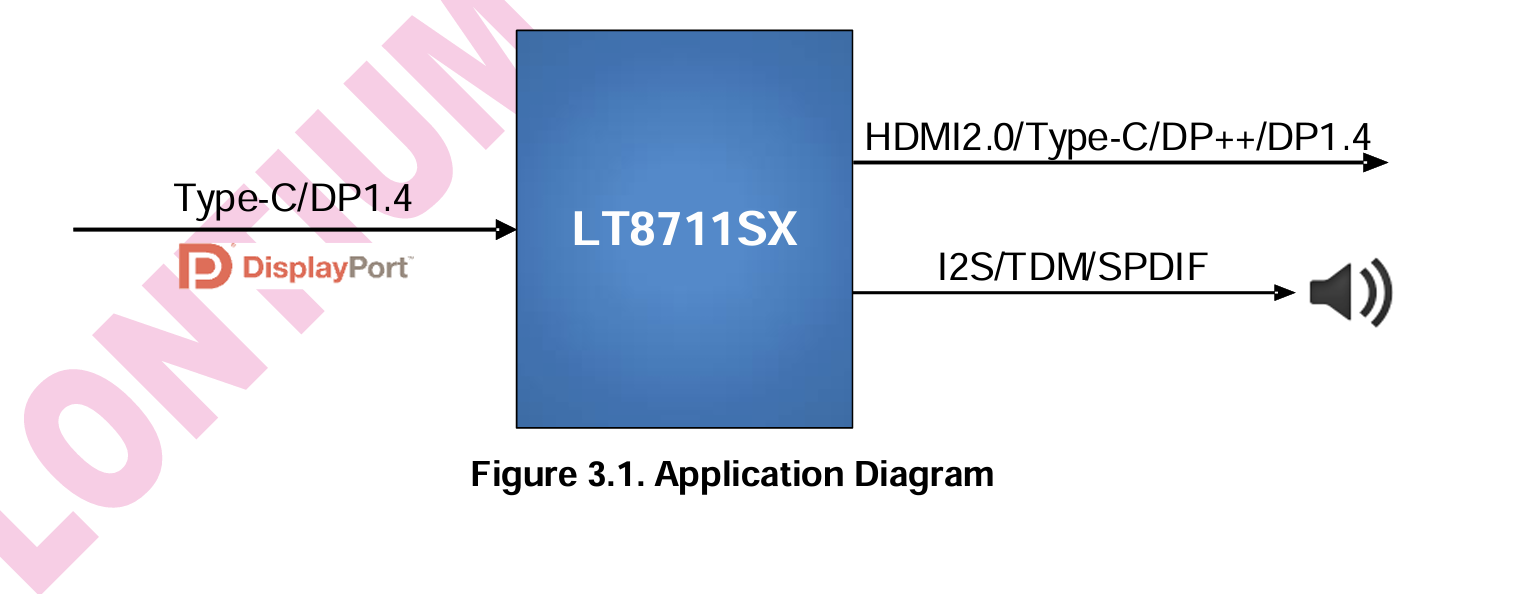

3. Applications
• Docking station
• Video Hua
• Dongle
