欧智通

欧智通科技股份有限公司主要经营：通信模组、系统解决方案、外围设备和视听设备的研发、生产与销售
包括IEEE802.11 a/b/g/n/ac/ax, BT、Cat.1bis、NB-IoT、PLC、UWB、毫米波、Sub1G、Zigbee和AIoT模组等

欧智通6221M-PUC Wi-Fi Module RTL8821CE 5G Wi-Fi

Wi-Fi Version：a/b/g/n/ac Bluetooth Version：BT5.0 Chip Manufacturer：Realtek WIFI&BT Interface 1：PCIE WIFI&BT Interface 2：USB Product Description Product Name RTL8821CE Wi-Fi Module 6221M-PUC RTL8821CE 5G Wi-Fi PCIe/USB 1T1R BT5.0/ BLE5.0 22.0 X 30.0mm Details Information Introduction Fn-Link Technology would like to announce a low-cost and low-power consumption module which has all of the Wi-Fi functionalities. It is a highly-integrated IEEE 802.11 a/b/g/n/ac MAC/Baseband/RF WLAN single chip. For Wireless...

产品中心, 技术支持, 欧智通, 规格书阅读更多...

欧智通6252B-UUB Wi-Fi6 Module RTL8852BU-VS-CG 2T2R

Wi-Fi Version：a/b/g/n/ac/ax Bluetooth Version：BT5.2 Chip Manufacturer：Realtek WIFI&BT Interface 1：USB Product Description Product Name RTL8852BU-VS-CG Wi-Fi6 Module  6252B-UUB RTL8852BU-VS-CG 802.11a/b/g/n/ac/ax USB2.0 2T2R BT5.2/BLE5.2 13.0 X 15.0mm Details Information Introduction The 6252B-UUB is a highly integrated module that support 2-stream 802.11ax solutions with Multi-user MIMO (Multiple-Input, Multiple-Output) with Wireless LAN (WLAN) and integrated Bluetooth 5 USB network interface controller. It combines a WLAN MAC, a 2T2R...

产品中心, 技术支持, 欧智通, 规格书阅读更多...

欧智通8266M-PU Wi-Fi Module QCA-2066-5

Wi-Fi Version：a/b/g/n/ac/ax Bluetooth Version：BT5.2 Chip Manufacturer：QCA WIFI&BT Interface 1：PCIE WIFI&BT Interface 2：USB Product Description Product Name QCA-2066-5 Wi-Fi Module 8266M-PU QCA-2066-5 Wi-Fi 6 PCIe/USB 2T2R BT5.2 L22 * W30 * H2.2 mm Details Information Introduction 8266M-PU is a highly integrated single module supporting 2x2 muti-user MIMO 802.11ax Wi-Fi and Bluetooth (BT) Milan.that with WLAN PCI Express network interface controller and USB interface. supporting simultaneous operation...

产品中心, 技术支持, 欧智通, 规格书阅读更多...

 欧智通8276M-PU Wi-Fi 7 Module QCA2076 2T2R

Product Description Product Name QCA2076 Wi-Fi 7 Module  8276M-PU QCA2076 802.11a/b/g/n/ac/ax/be PCIe/USB 2T2R BT5.3/ BLE5.3 22.0 X 30.0mm Details Information Introduction 8276M-PU is a highly integrated System-On-Chip (SoC) supporting Wi-Fi 7 and Bluetooth (BT) 5.3. supports simultaneous operation on 2.4 GHz +5 GHz, 2.4 GHz + 6 GHz and 5 GHz + 6 GHz. Features General Features Support IEEE802.11a/b/g/n/ac/ax/be. Support Multi-link Operation (MLO). Supports 2x2 Multi-User Multiple-Input...

产品中心, 技术支持, 欧智通, 规格书阅读更多...

欧智通 6223E-UUD Wi-Fi Module RTL8723DU 1T1R2.4G Wi-Fi USB2.0

Product Name RTL8723DU Wi-Fi Module 6223E-UUD RTL8723DU 2.4G Wi-Fi USB2.0 Interface 1T1R BLE4.2 12.2 X 13.0mm Details Information Introduction 6223E-UUD is a small size and low profile of Wi-Fi + BT Combo module, board size is 12.2mm*13mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products. It provides...

产品中心, 技术支持, 欧智通, 规格书阅读更多...

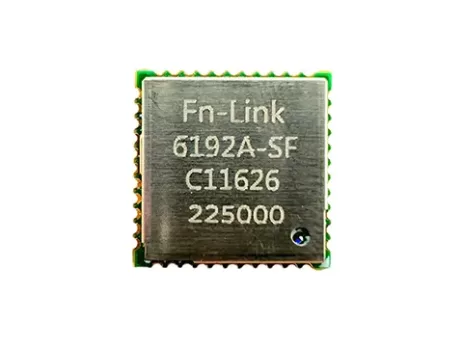

欧智通 6192A-SF Wi-Fi Module RTL8192FS 2.4G Wi-Fi

Product Name  RTL8192FS Wi-Fi Module 6192A-SF RTL8192FS  2T2R 2.4G Wi-Fi SDIO Interface 12.0x12.0mm Details Information Introduction 6192A-SF base on RTL8192FS complied with IEEE 802.11 b/g/n standard from 2.4G-2.5GHz. Support 300Mbps high speed wireless network connection with SDIO interface (1.1/2.0/3.0 compliant).  Features  General  12x12mm, 44pin, 3.3V power in.  RTL8192FS.  Complete 802.11n 2x2 MIMO solution for 2.4GHz, maximum data rate up to 300Mbps using 40Mhz...

产品中心, 欧智通阅读更多...
