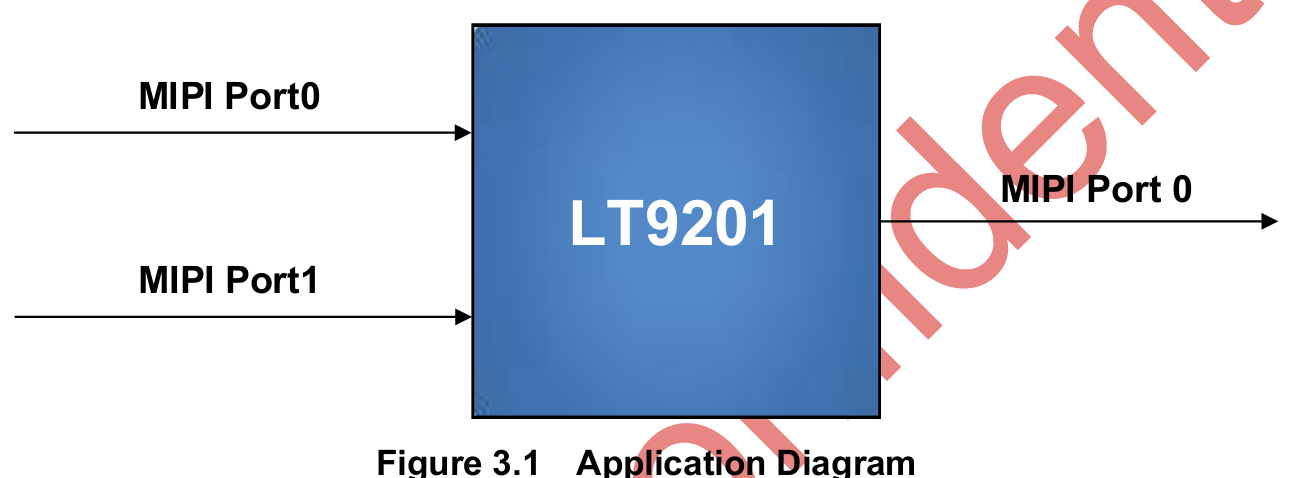

LT9201 — MIPI Dual-port to MIPI Single-port
⚫ Dual-Port MIPI DSI/CSI Receiver
▪ Compliant with D-PHY2.1 & DSI 1.1 & CSI-2 2.0 – Support 1/2 configurable ports – 1 clock lane and 1/2/3/4 configurable data lanes per
port – Up to 4.5Gbps per data lane
▪ Compliant with C-PHY1.2 & DSI-2 1.0 & CSI-2 2.0 – Support 1/2 configurable ports – 1/2/3 configurable data trios – Up to 3.5Gsps per data trio
▪ Support BTA (Bus Turnaround)
▪ Support up to 4K@144 RGB 8bpc
▪ Support up to 8K@60 DSC pass-through
▪ Support up to 4 virtual channel data streams per port
⚫ Single-Port MIPI® DSI/CSI Transmitter
▪ Compliant with D-PHY2.1 & DSI 1.1 & DSI-2 1.0 & CSI-2
2.0 – 1 clock lane and 1/2/3/4 configurable data lanes per
port – Up to 4.5Gbps per data lane
▪ Compliant with C-PHY1.2 & DSI-2 1.0 & CSI-2 2.0 – 1/2/3 configurable data trios per port – Up to 3.5Gsps per data trio
▪ DSI Support 16/20/24-bit YCbCr4:2:2, 16/18/24/30-bit
RGB, 12-bit YcbCr420, Compressed Pixel Stream
▪ CSI Support RGB888/666/565, YUV422 8/10bit,
YUV420 8bit(legacy), RAW (pass-through)
▪ Support DSI Low Power Command
▪ Support DSI Video mode
▪ Support DSI Command mode (pass-through)
▪ D-PHY support lane swap and PN swap
▪ C-PHY support trio swap
▪ Programmable transmitter swing and pre-emphasis
⚫ OSD
▪ Support font-based and bit-map OSD
▪ Support adjustable transparency
▪ Support Variable Refresh Rate
⚫ Miscellaneous
▪ CSC: RGB <-> YCbCr4:4:4 <-> YCbCr4:2:2
