Product Name

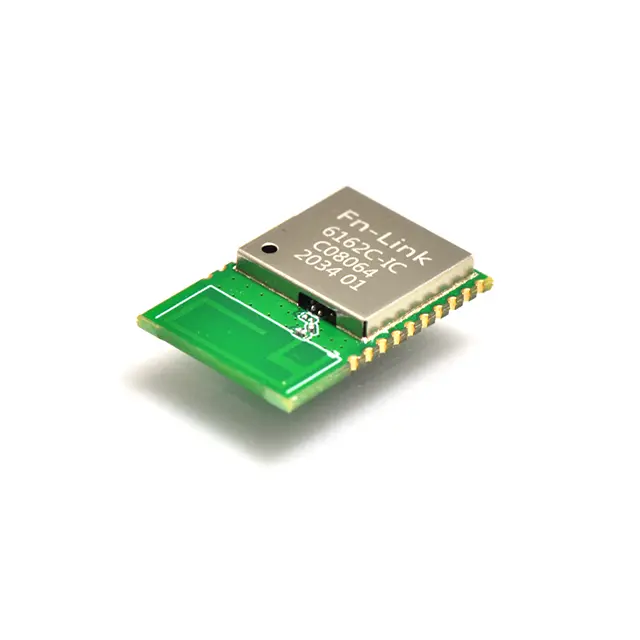

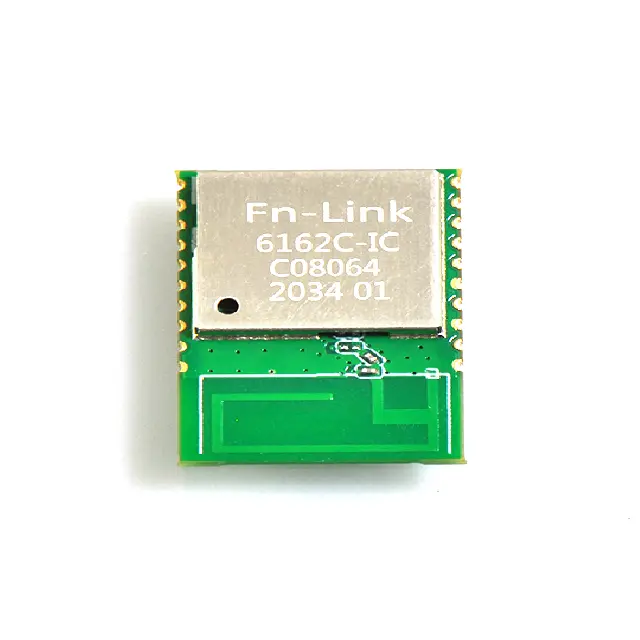

RTL8762CMF  Bluetooth Module 6162C-IC

RTL8762CMF

Bluetooth 5.0 Mesh only

UART Interface

18.6X13mm

Details Information

Introduction

Mesh self-organizing network type communication equipment, can efficiently and quickly form a non-central wireless broadband network; Supporting multi-hop relay can effectively expand the coverage radius of wireless network.

FN-link releases a low-cost, low-power Bluetooth 5.0 module with Mesh functionality. It is a highly integrated ARM Cortex-M4F 32-bit CPU, 160kByte RAM and 512kByte flash MCU, and Bluetooth 5.0 LE transceiver Mesh network solution.

The wireless module meets the Bluetooth 5.0 LE standard and provides UART interfaces for Bluetooth. Modules of moderate size, suitable for intelligent LED and other applications, can efficiently solve the complex environment such as high-rise, underground, tunnel, large complex emergency communication problems.

Features

Supports Bluetooth 5 core specification.

Supports 2M LE ，LE Long Range，LE Data Length Extensions（257 byte).

Supports OTA (Over-the-Air)programming mechanism for firmware upgrade.

UART x 2，one for data transceiver，the other for firmware upgrade.

Embedded 4Mbits Flash.

Supports 5 GPIOs.

Embedded Switching Regulator(SWR) for low current consumption.

Package：18.6X13X2.5mm.

Applications

Laptop,Advertising Machine, Smart TV, IPC/NVR ,Industrial Control Equipment, Car Recorder, Smart Doorbell, Smart TV,Smart Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Car Front/Back End, UAV, Robot, Intelligent Gateway, Children’s Education Toy, Lighting Fixture,Intelligent Street Lamp,Smart Home Appliances/ Home Appliance, Instrumentation (Water, Electricity, Gas) Smart City and other Consumer Electronic Products.

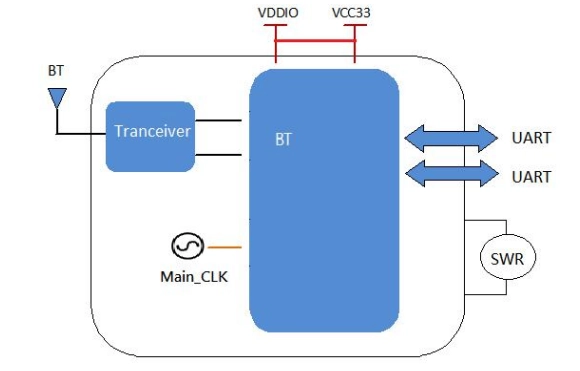

Block Diagram

Parameters

Ordering Information
