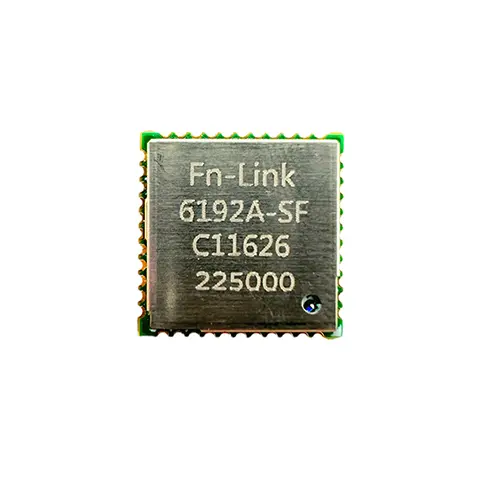

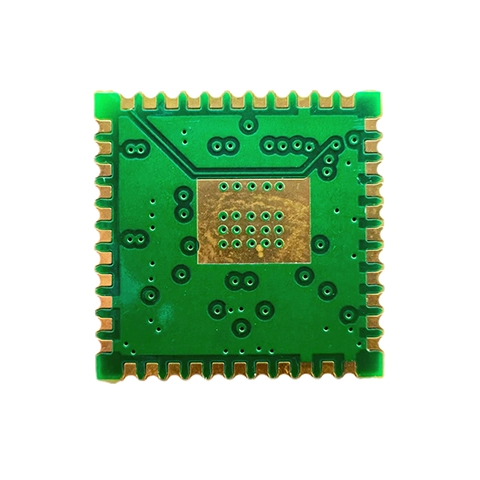

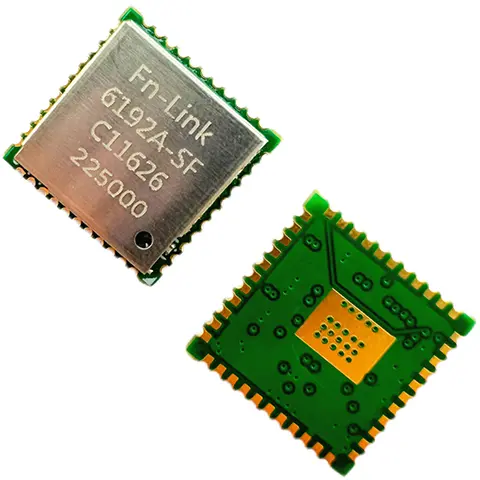

欧智通 6192A-SF Wi-Fi Module RTL8192FS 2.4G Wi-Fi
Product Name
RTL8192FS Wi-Fi Module 6192A-SF
RTL8192FS 2T2R
2.4G Wi-Fi
SDIO Interface
12.0×12.0mm
Details Information
Introduction
6192A-SF base on RTL8192FS complied with IEEE 802.11 b/g/n standard from 2.4G-2.5GHz. Support 300Mbps high speed wireless network connection with SDIO interface (1.1/2.0/3.0 compliant).
Features
General
12x12mm, 44pin, 3.3V power in.
RTL8192FS.
Complete 802.11n 2×2 MIMO solution for 2.4GHz, maximum data rate up to 300Mbps using 40Mhz bandwidth.
Complies with SDIO 1.1/2.0/3.0 for WLAN with clock rate up to 100Mhz.
Application
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
Block Diagram
Parameters
| Model No. | 6192A-SF | Main Chipset | RTL8192FS |
| Interface | Wi-Fi: SDIOV1.1/2.0/3.0 | Wi-Fi Standard | IEEE802.11b/g/n |
| Data Rate | 300Mbps | Certification | RoHS,REACH |
| RF Antenna | External Antenna | OS Supported | Android /Linux/ Win CE /iOS /XP/WIN7/WIN10 |
| Operating Frequency | 2.4G:2.400～2.4835GHz | Operating Voltage | 3.3V |
| Dimension | L12.0 * W12.0 *T1.6mm | RF Chain | 2T2R |
| Operating Temperature | 0°C to 70°C | Storage Temperature | -40°C to 85°C |
Ordering Information
| Part No. | Description |
| FG6192ASFX-00 | RTL8192FS,b/g/n,Wi-Fi,2T2R,12X12mm,SDIO,with shielding, PCB V1.0 |
| FG6192ASFX-01 | RTL8192FS,b/g/n,Wi-Fi,2T2R,12X12mm,SDIO,no shielding, PCB V1.0 |
