RTL8723DU Wi-Fi Module 6223E-UUD
RTL8723DU
2.4G Wi-Fi
USB2.0 Interface
1T1R
BLE4.2
12.2 X 13.0mm
Details Information
Introduction

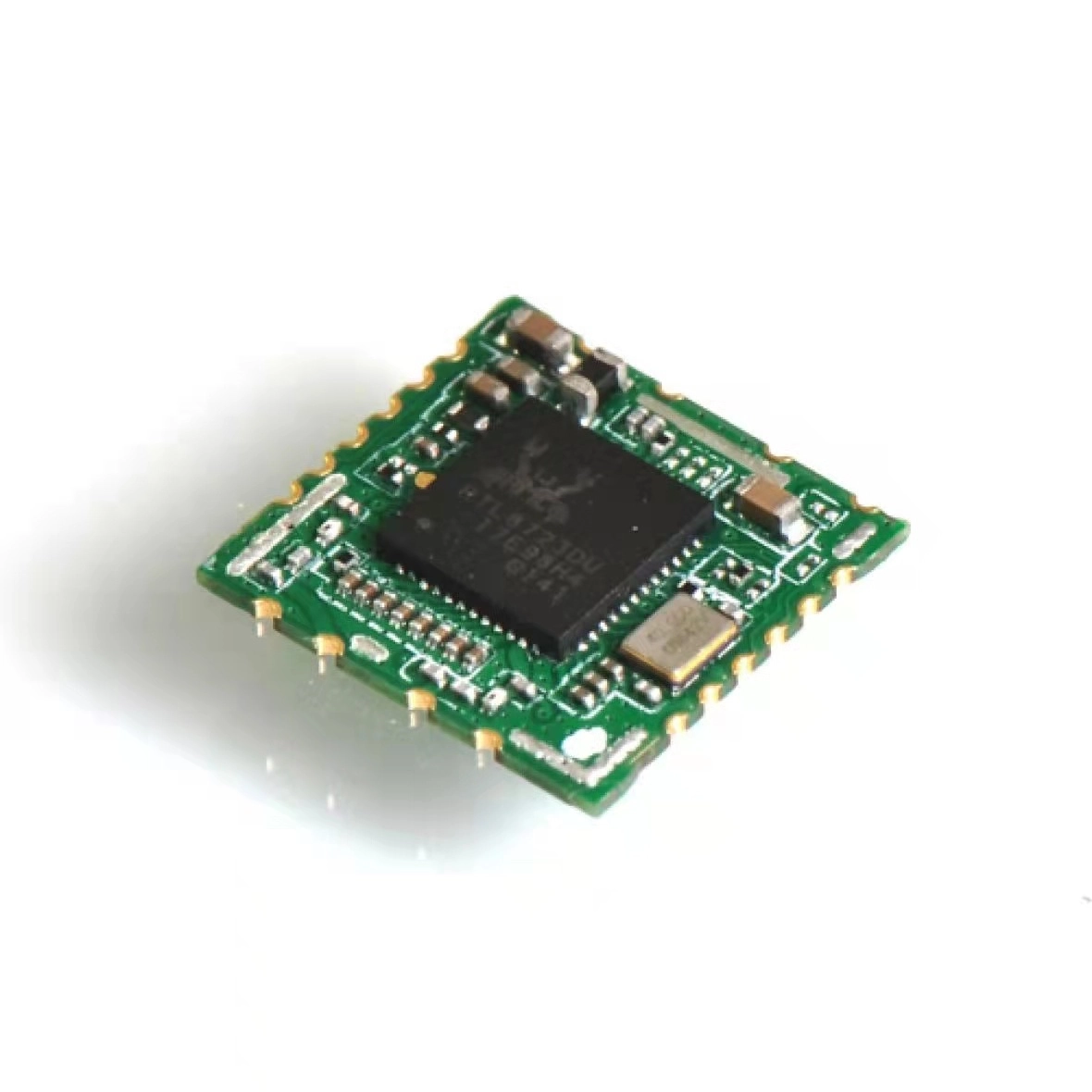

6223E-UUD is a small size and low profile of Wi-Fi + BT Combo module, board size is 12.2mm*13mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products. It provides USB interface for Wi-Fi and Bluetooth. The module provides simple legacy and 20MHz/40MHz co-existence mechanisms to ensure backward and network compatibility and Bluetooth can support BT2.1+EDR/BT3.0 and BT4.2.
6223E-UUD uses highly integrated Wi-Fi/BT single chip based on advanced COMS process.
6223E-UUD integrates whole Wi-Fi/BT function blocks into a chip, such as USB, MAC, BB, AFE, RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.
This compact module is a total solution for a combination of Wi-Fi + BT technologies.
The module is specifically developed for Smart phones and Portable devices.
Features
General Features
Operate at ISM frequency bands (2.4GHz).
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i.
Enterprise level security which can apply WPA/WPA2 certification for Wi-Fi.
Wi-Fi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates.
WLAN Interface
USB for Wi-Fi and Bluetooth.
Bluetooth Features
Fully Qualified for Bluetooth 2.1+EDR specification including both 2Mbps and 3Mbps modulation mode.
Fully qualified for Bluetooth 3.0.
Fully qualified for Bluetooth 4.2 Dual mode.
Full–speed Bluetooth operation with Piconet and Scatternet support.
Applications
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
Block Diagram
single Antenna:
Dual Antenna:
Parameters
| Model No. | 6223E-UUD | Main Chipset | RTL8723DU |
| Interface | Wi-Fi: USB 2.0BT: USB 2.0 | Wi-Fi Standard | IEEE 802.11a/b/g/n |
| Data Rate | 150Mbps | Certification | RoHS,REACH |
| RF Antenna | External Antenna | OS Supported | Android /Linux/ Win CE /iOS /XP/WIN7/WIN10 |
| Operating Frequency | 2.4G:2.400GHz～2.497GHz(2.4G ISM Band) | Operating Voltage | 3.3V |
| Dimension | L x W x H: 12.2 x 13 x1.6 (typical) mm | RF Chain | 1T1R |
| Operating Temperature | 0°C to 70°C | Storage Temperature | -55°C to 85°C |
Ordering Information
| Part No. | Description |
| FG6223EUUD-W1 | RTL8723DU, b/g/n, Wi-Fi+BLE4.2, 1T1R, 12.2X13mm, USB+PCM Single antenna, PCB version V1.0 |
| FG6223EUUD-W2 | RTL8723DU, b/g/n, Wi-Fi+BLE4.2, 1T1R, 12.2X13mm, USB+PCM, Dual Antenna, PCB version V1.0 |
| FG6223EUUD-W3 | RTL8723DU,b/g/n,Wi-Fi+BLE4.2,1T1R,12.2X13mm,USB+PC M Single antenna, PCB version V1.0 (with shield cover) |
| FG6223EUUD-W4 | RTL8723DU, b/g/n, Wi-Fi+BLE4.2, 1T1R, 12.2X13mm, USB Single antenna, PCB version V3.0 |
| FG6223EUUD-W5 | RTL8723DU, b/g/n, Wi-Fi+BLE4.2, 1T1R, 12.2X13mm, USB, Dual antenna, PCB version V3.0 |
| FG6223EUUD-L4 | RTL8723DU b/g/n,Wi-Fi+BLE4.2,1T1R,12.2X13mm, USB+PCM,(No USB drop capacitors),Single antenna |
