Product Name

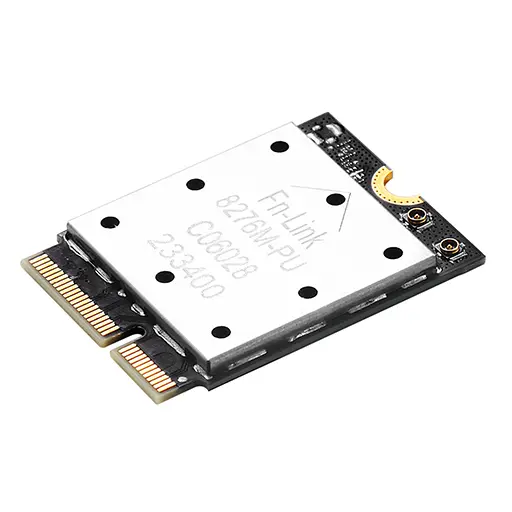

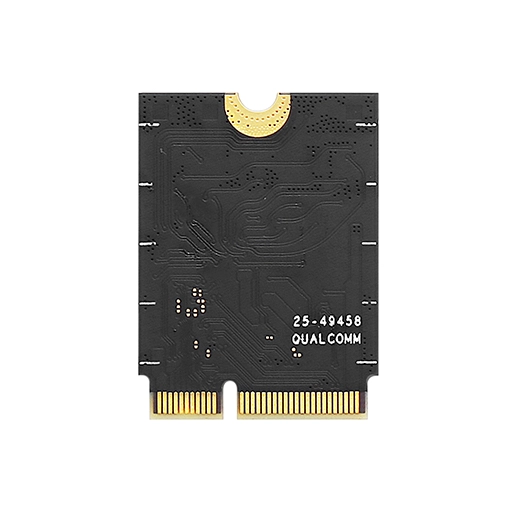

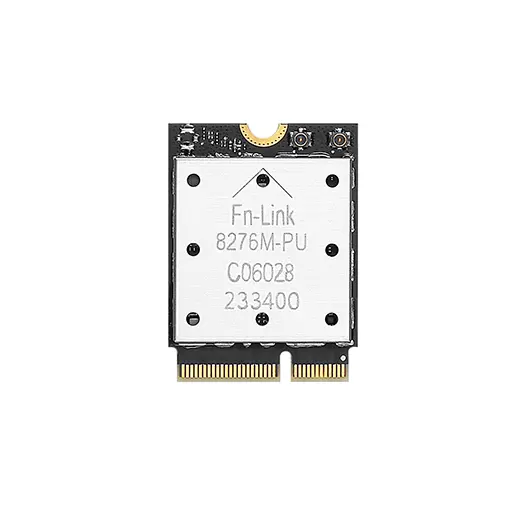

QCA2076 Wi-Fi 7 Module  8276M-PU

QCA2076

802.11a/b/g/n/ac/ax/be

PCIe/USB

2T2R

BT5.3/ BLE5.3

22.0 X 30.0mm

Details Information

Introduction

8276M-PU is a highly integrated System-On-Chip (SoC) supporting Wi-Fi 7 and Bluetooth (BT) 5.3.

supports simultaneous operation on 2.4 GHz +5 GHz, 2.4 GHz + 6 GHz and 5 GHz + 6 GHz.

Features

General Features

Support IEEE802.11a/b/g/n/ac/ax/be.

Support Multi-link Operation (MLO).

Supports 2×2 Multi-User Multiple-Input Multiple-Output (MU-MIMO).

Support tri-band 2.4 GHz/5 GHz/6 GHz.

Support up to 4096 QAM modulation at each band.

Channel bandwidth up to 40 MHz at 2.4 GHz, up to 160 MHz at 5GHz and 6 GHz.

Dual Band Simultaneous (DBS) up to 2.4 GHz + 5 GHz / 6 GHz.

Up to 5.3 Gbps data rate (2×2 5 GHz 160 MHz + 2×2 6 GHz 160MHz with 4K QAM modulation).

Dynamic Frequency Selection (DFS) radar detection.

Host Interface

Low-power PCIe (with L1 substate) interface.

Bluetooth Features

Compliant with Bluetooth 5.3 and ANT+

Support dual Bluetooth,Simultaneous Bluetooth connection and Bluetooth scan/Discovery;MRC receiver and implicit beamforming transmitter.

Support LE audio

Support 2 Mbps Bluetooth Low Energy (BLE), BLE Long Range

BT host digital interface: USB

Applications

Video Streaming, Video/Voice Conferencing, Wireless Gaming, Real-time Collaboration, Cloud/ Ideal Solutions For Edge Computing, Industrial IoT, Immersive AR/VR, Interactive Telemedicine and other Application Scenarios.
