欧智通8266M-PU Wi-Fi Module QCA-2066-5
- Wi-Fi Version：a/b/g/n/ac/ax
- Bluetooth Version：BT5.2
- Chip Manufacturer：QCA
- WIFI&BT Interface 1：PCIE
- WIFI&BT Interface 2：USB
Product Name

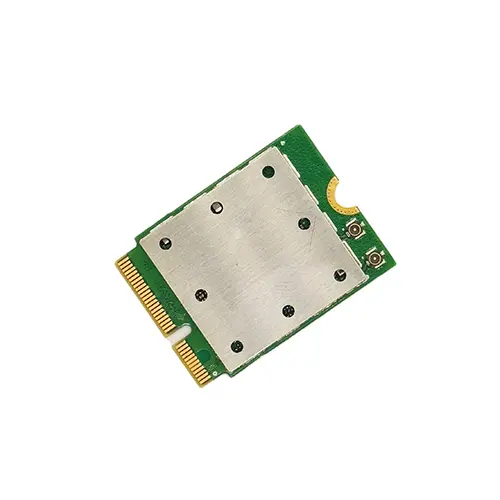

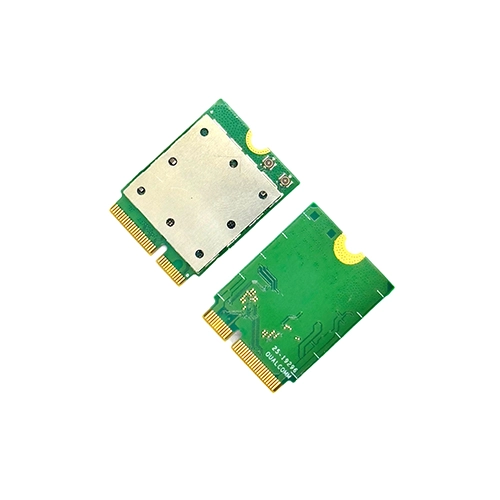

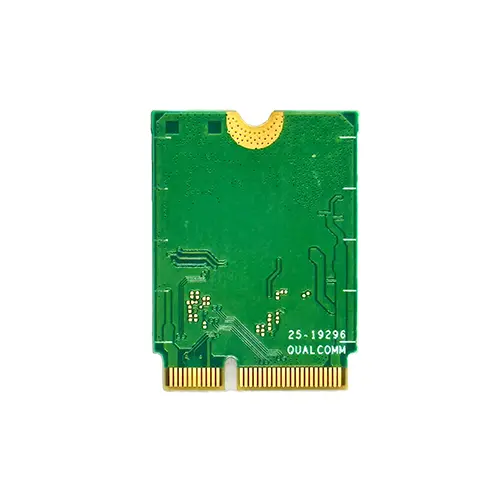

QCA-2066-5 Wi-Fi Module 8266M-PU
QCA-2066-5
Wi-Fi 6
PCIe/USB
2T2R
BT5.2
L22 * W30 * H2.2 mm
Details Information
Introduction
8266M-PU is a highly integrated single module supporting 2×2 muti-user MIMO 802.11ax Wi-Fi and Bluetooth (BT) Milan.that with WLAN PCI Express network interface controller and USB interface. supporting simultaneous operation on 2.4 GHz and 5 GHz/ 6 GHz, also known as Dual Band Simultaneous(DBS). DBS mode provide up to 3 Gbps data rate(2×2+2×2 11ax DBS).
Features
General
Support IEEE802.11a/b/g/n/ac/ax .
Supports 2×2 Multi-User Multiple-Input Multiple-Output (MU-MIMO).
Dual Band Simultaneous (DBS), up to 3 Gbps data rate (2×2+2×2 11ax DBS) . Support Tri-band 2.4 GHz/5 GHz/6 GHz.
20 MHz/40 MHz channel bandwidth for 2.4 GHz and 20MHz/40 MHz/80 MHz/160 MHz channel
bandwidth for 5GHz/6 GHz.
Host Interface
Supports USB.
Bluetooth Features
Compliant with Bluetooth Milan.
Split ACL support for A2DP true stereo.
Dual Mode support: Simultaneous LE and BR/EDR.
Flexible interface SlimbusPCM /I2S for Bluetooth audio.
BT host digital interface: USB
Applications
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
Block Diagram
Parameters
| Model No. | 8266M-PU | Main Chipset | QCA-2066-5 |
| Interface | Wi-Fi: PCI-e BT: Uart/PCM | Wi-Fi Standard | IEEE802.11a/b/g/n/ac/ax+BT5.2 |
| Data Rate | 433Mbps | Certification | RoHS |
| RF Antenna | External Antenna | OS Supported | Android /Linux/ Win CE /iOS /XP/WIN7/WIN10 |
| Operating Frequency | 2.4G:2.400GHz～2.497GHz(2.4G ISM Band)5.8G:4.900GHz～5.845GHz(5.0G ISM Band) | Operating Voltage | 3.3V |
| Dimension | L22 * W30 * H2.2 mm | RF Chain | 2T2R |
| Operating Temperature | -20°C to 70°C | Storage Temperature | -40°C to 85°C |
Ordering Information
| Part No. | Description |
| FG8274NPRX-00 | QCA-2066-5, a/b/g/n/ac/ax Wi-Fi+BT5.2, 2T2R, 22X30mm, PCIE+ USB |
