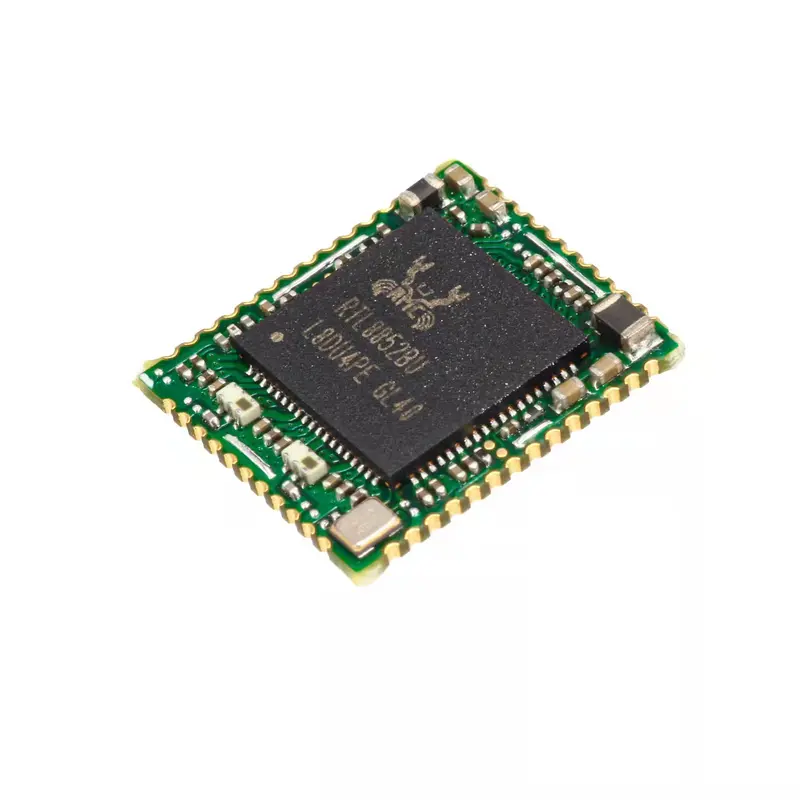

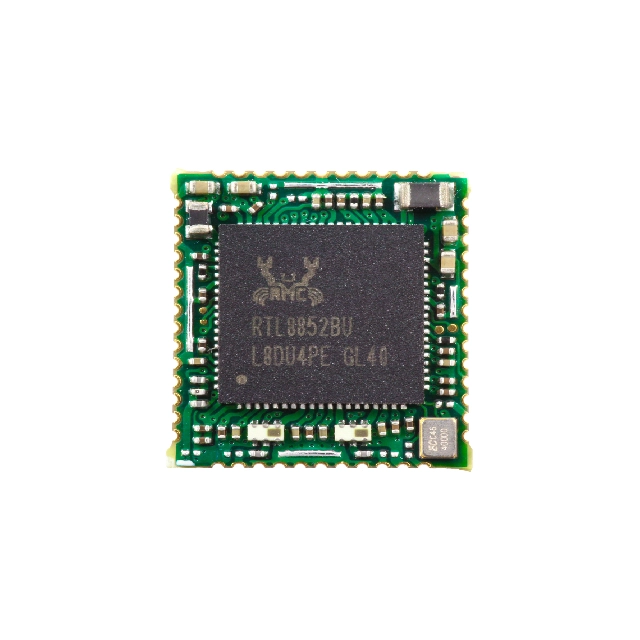

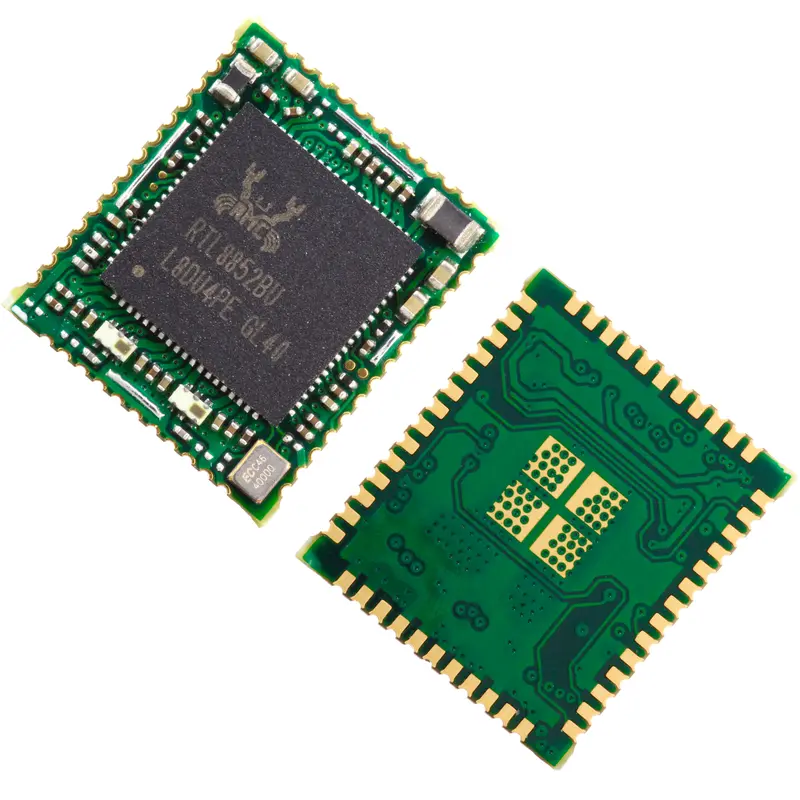

欧智通6252B-UUB Wi-Fi6 Module RTL8852BU-VS-CG 2T2R
- Wi-Fi Version：a/b/g/n/ac/ax
- Bluetooth Version：BT5.2
- Chip Manufacturer：Realtek
- WIFI&BT Interface 1：USB
Product Name
RTL8852BU-VS-CG Wi-Fi6 Module 6252B-UUB
RTL8852BU-VS-CG
802.11a/b/g/n/ac/ax
USB2.0
2T2R
BT5.2/BLE5.2
13.0 X 15.0mm
Details Information
Introduction
The 6252B-UUB is a highly integrated module that support 2-stream 802.11ax solutions with Multi-user MIMO (Multiple-Input, Multiple-Output) with Wireless LAN (WLAN) and integrated Bluetooth 5 USB network interface controller. It combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single chip. The RTL8852BU-VS-CG provides a complete solution for a high-performance integrated wireless and Bluetooth device.
This compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for Smart phones and Portable devices.
Features
General
Support 802.11ac 2×2,Wave-2 compliant with RX MU-MIMO.
Backward compatible with 802.11a/n/ac devices while operating at 802.11ax data rates.
IEEE 802.11a/b/g/n/ac/ax compatible WLAN.
IEEE 802.11i (WPA, WPA2, WPA3). Open, shared key, and pair-wise key authentication services.
IEEE 802.11ax MIMO OFDM/OFDMA,IEEE 802.11ac MIMO OFDM,IEEE 802.11n MIMO OFDM.
PHY Features
CMOS MAC, Baseband PHY and RF in a single chip for IEEE 802.11a/b/g/n/ac/ax compatible WLAN.
Maximum PHY data rate up to 286.8 Mbps using 20MHz bandwidth, 573.5Mbps using 40MHz bandwidth, and 1201Mbps using 80MHz bandwidth.
Bluetooth Features
Complies with USB2.0 for WLAN and BT controller.
Compatible with Bluetooth v2.1+EDR.
Support Bluetooth 5system (BT 5.2 Logo Compliant).
Dual Mode support: Simultaneous LE and BR/EDR.
Applications
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products
Block Diagram
Parameters
| Model No. | 6252B-UUB | Main Chipset | RTL8852BU-VS-CG |
| Interface | Wi-Fi: USB2.0 BT: USB | Wi-Fi Standard | IEEE802.11a/b/g/n/ac/ax+BT5.2 |
| Data Rate | 1200Mbps | Certification | RoHS,REACH |
| RF Antenna | External Antenna | OS Supported | Android /Linux/ iOS /WIN10 |
| Operating Frequency | 2.4G:2.400GHz～2.497GHz(2.4G ISM Band) 5.8G:4.900GHz～5.845GHz(5.0G ISM Band) | Operating Voltage | 3.3V |
| Dimension | L13 * W15 * T2.3mm | RF Chain | 2T2R |
| Operating Temperature | -10°C to 70°C | Storage Temperature | -40°C to 85°C |
Ordering Information
| Part No. | Description |
| FG6252BUUB-00 | RTL8852BU-VS-CG,a/b/g/n/ac/ax,BLE5.2,2T2R,15X13mm, USB2.0 |
