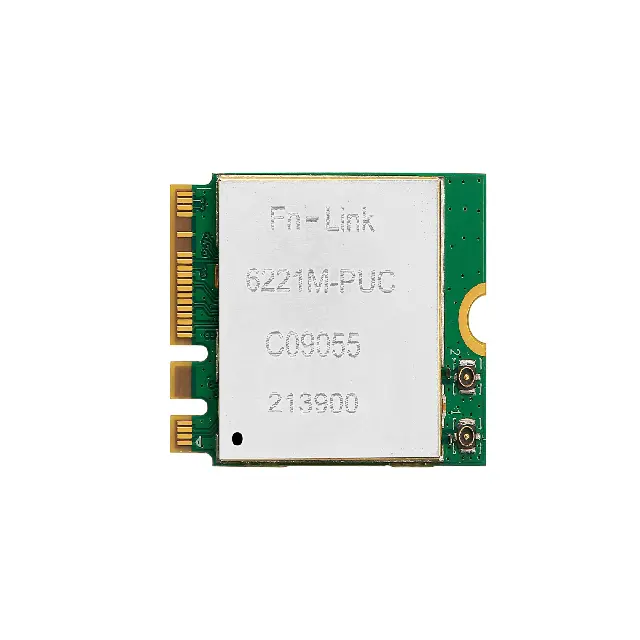

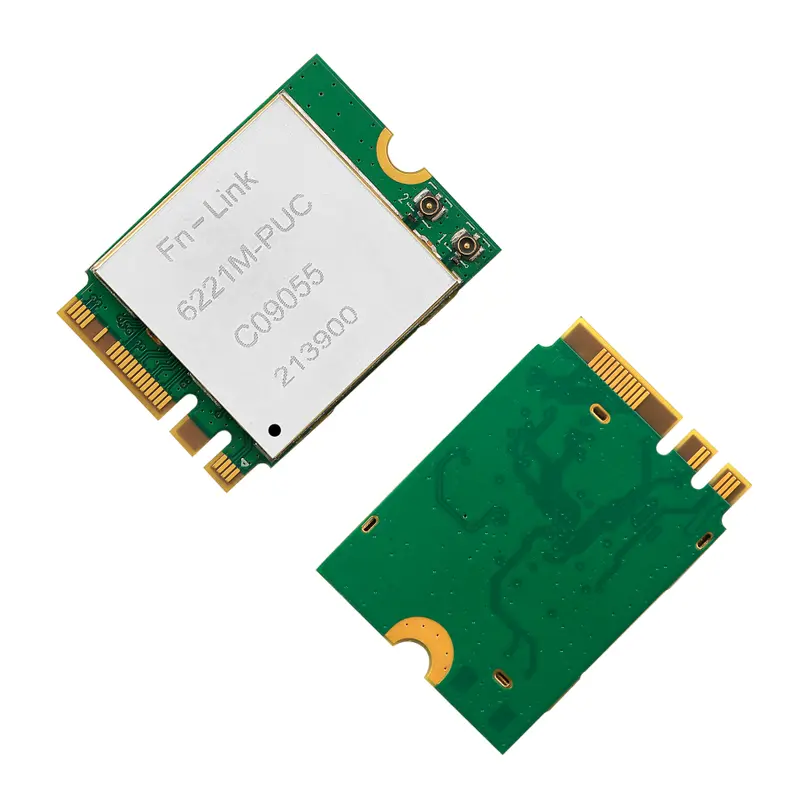

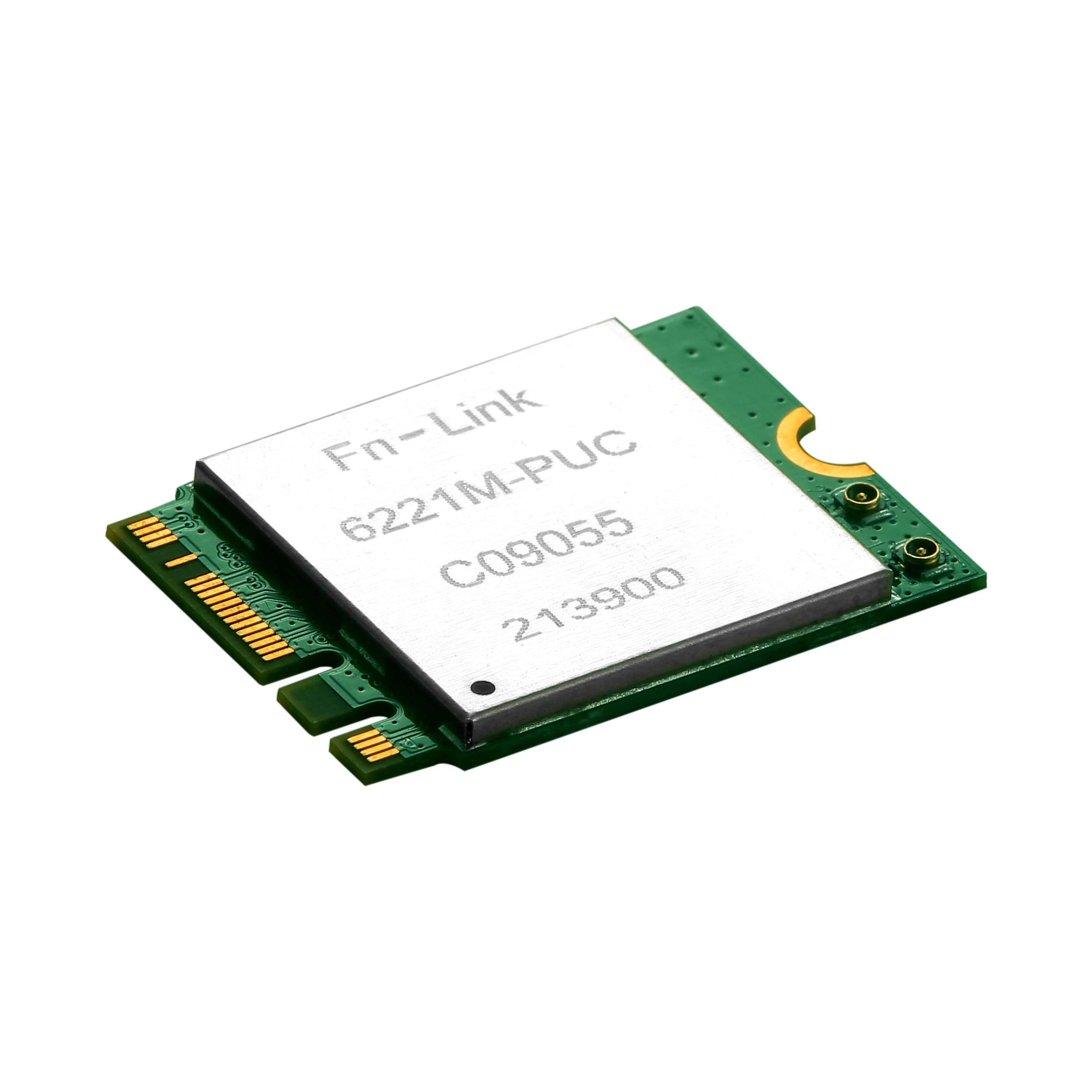

欧智通6221M-PUC Wi-Fi Module RTL8821CE 5G Wi-Fi
- Wi-Fi Version：a/b/g/n/ac
- Bluetooth Version：BT5.0
- Chip Manufacturer：Realtek
- WIFI&BT Interface 1：PCIE
- WIFI&BT Interface 2：USB
Product Name
RTL8821CE Wi-Fi Module 6221M-PUC
RTL8821CE
5G Wi-Fi
PCIe/USB
1T1R
BT5.0/ BLE5.0
22.0 X 30.0mm
Details Information
Introduction
Fn-Link Technology would like to announce a low-cost and low-power consumption module which has all of the Wi-Fi functionalities. It is a highly-integrated IEEE 802.11 a/b/g/n/ac MAC/Baseband/RF WLAN single chip. For Wireless LAN(WLAN)operation. The integrated module provides PCI-e interface for Wi-Fi .
The module provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanisms to ensure backward and network compatibility.
The wireless module complies with IEEE 802.11 a/b/g/n/ac 1×1 SISO standard and it can achieve up to a speed of 433Mbps to connect the wireless LAN. The integrated module provides PCI-e interface for Wi-Fi, USB interface for Bluetooth.
This compact module is a total solution for a combination of Wi-Fi and Bluetooth V5.0 technologies.
The module is specifically developed for all portable devices.
Features
General
Highly integrated wireless local area network (WLAN) system-on-chip (SoC) for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.
Host Interface
Supports low power PCI-e interface for WLAN and USB interface for Bluetooth.
Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence.
Bluetooth Features
Supports Bluetooth V5.0.
Support bluetooth 4.2system, compatible with BT v2.1+EDR.
Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.
BT host digital interface: – USB1.1
Applications
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
Block Diagram
Parameters
| Model No. | 6221M-PUC | Main Chipset | RTL8821CE |
| Interface | Wi-Fi: PCIeBT: USB | Wi-Fi Standard | IEEE802.11a/b/g/n/ac+BLE5.0 |
| Data Rate | 433Mbps | Certification | RoHS,REACH |
| RF Antenna | On-board Antenna | OS Supported | Android /Linux/ Win CE /iOS /XP/WIN7/WIN10 / WIN11 |
Operating Frequency | 2.4G:2.400GHz～2.497GHz(2.4G ISM Band)5.8G:4.900GHz～5.845GHz(5.0G ISM Band) | Operating Voltage | 3.3V |
| Dimension | L22 * W30 * T2.2 mm | RF Chain | 1T1R |
| Operating Temperature | 0°C to 70°C | Storage Temperature | -55°C to 85°C |
Ordering Information
| Part No. | Description |
| FG6221MPUC-00 | RTL8821CE, a/b/g/n/ac Wi-Fi, 1T1R, BT5.0,22.0*30.0mm, PCIe,USB,PCB V1.0 |
| FG6221MPUC-01 | RTL8821CE-CG, a/b/g/n/ac Wi-Fi, 1T1R, BT5.0, 22.0*30.0mm, PCIe,USB,PCB V1.0 |
| FG6221MPUC-02 | RTL8821CE-CG, a/b/g/n/ac Wi-Fi, 1T1R, BT5.0, 22.0*30.0mm, PCIe,USB,PCB V2.0 |
| FG6221MPUC-04 | RTL8821CE-VC, a/b/g/n/ac Wi-Fi, 1T1R, BT5.0, 22.0*30.0mm, PCIe,USB,PCB V2.0 |
