LT8712SX —Type-C/DP1.4 to Dual-Port DP1.4/HDMI2.0 Converter with Audio
1. Description
The LT8712SX is a high performance Type-C/DP1.4 to Type-C/DP1.4/HDMI2.0/DP++ converter, with two configurable DP1.4/HDMI2.0 output interfaces and audio output interface. LT8712SX supports both the DisplayPort™ Single Stream Transport (SST) mode and Multi-Stream Transport (MST) mode. When receiving the multiple video/audio streams which are packetized and transmitted over a single DP link, LT8712SX recovers the packetized Multi-streams to multiple different video/audio streams. In SST mode, two TX interfaces output the same video stream/audio stream. Also, two CC controllers are included for CC communication to implement DP Alt Mode and power delivery function. On-chip USB3.2 Gen1 switch is a high-speed bi-directional switch which provides flexible switching to accommodate connector flipping.
Digital audio output interfaces are available, including I2S/TDM/SPDIF.
The device is capable of automatic operation which is enabled by an integrated microprocessor that uses an embedded SPI flash for firmware storage. System control is also available through the use of a dedicated configuration I2C slave interface.
2. Features
• USB Type-C
• DP1.4a/eDP1.5 Receiver
• DSC Decoder
• DP/DP++/HDMI Combo Transmitters
• Digital Audio Outputs
• 2xHDMI2.0/DP++ Transmitters

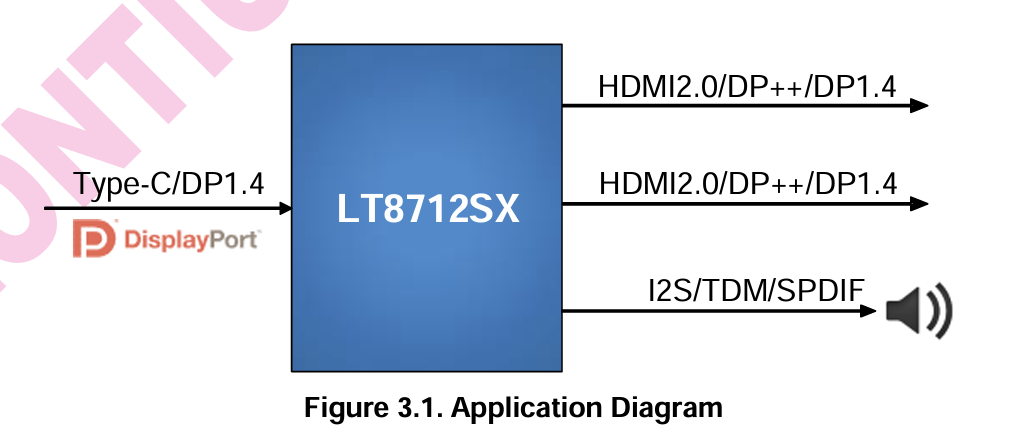

3. Applications
• Docking Station
• Video Hub
• Dongle
