LT4079—USB2.0/USB3.2Gen1 to SPI/TTL/MIPI/LVDS/eDP
LT4079— Product BriefUSB2.0/USB3.2Gen1 to SPI/TTL/MIPI/LVDS/eDP
The LT4079 is a high performance USB2.0/USB3.2Gen1
to SPI/TTL/MIPI/LVDS/eDP converter, designed to
connect a USB source to a display panel.
The LT4079 integrates an USB2.0/USB3.2Gen1
compliant device, and SPI/TTL/MIPI/LVDS/eDP video
transmitter. Also, integrates an embedded DRAM for
Frame rate control function and a high-performance OSD.
Also supports panel touch data transmission for human
computer interaction and extensive generic interface
options, such as I2C/UART/PWM/QSPI.
The device is capable of automatic operation which is
enabled by an integrated microprocessor for real-time
control tasks. Also, uses a QSPI flash for firmware storage.
System control is available through the use of a dedicated
configuration I2C slave or USB interface.

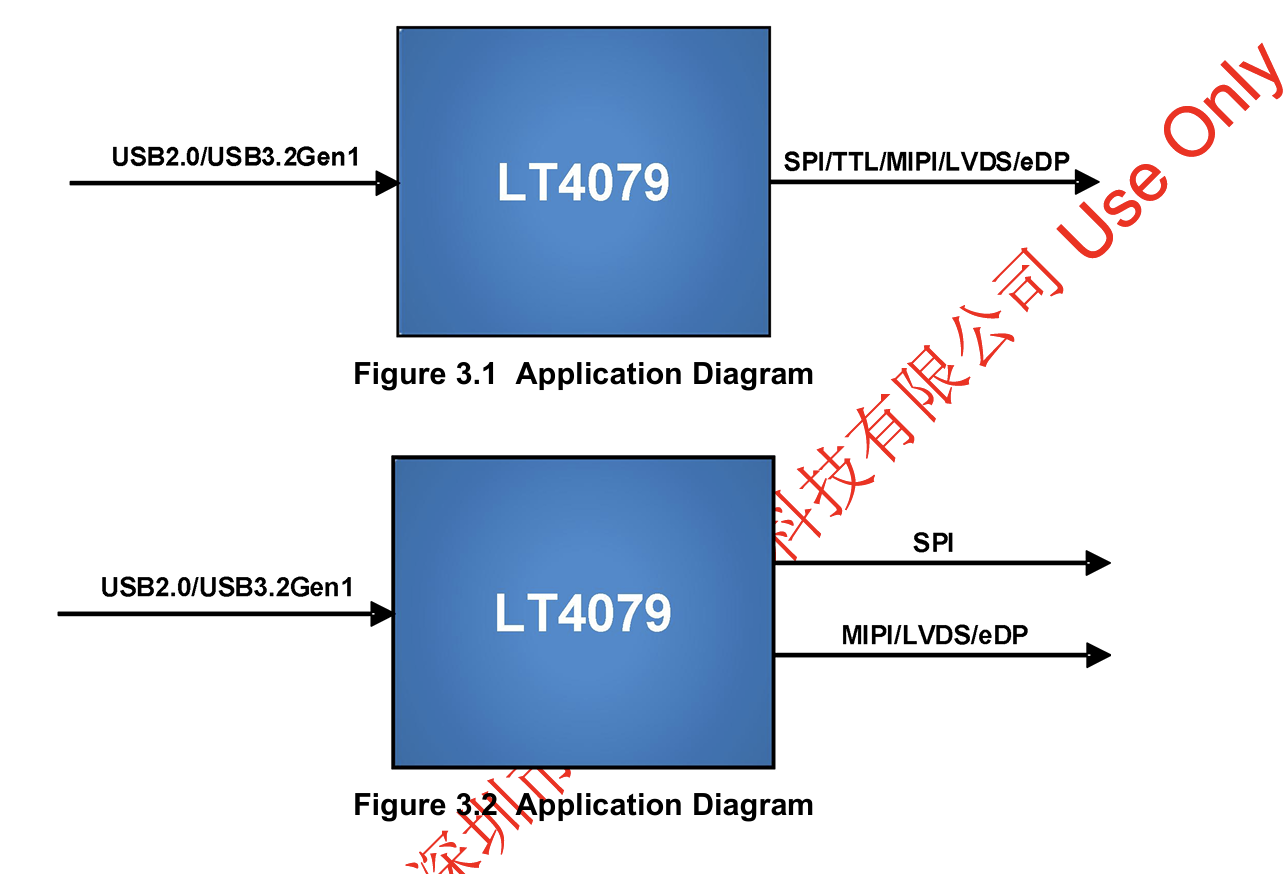

- Applications
MultipleDisplay
SmartVisionTerminal
Support90°/180°/270°rotation, up to 1024X600@60fps YUV422-8Bit
