LT9611GX — Dual-Port MIPI DPHY/CPHY to HDMI2.1 Converter
1. Description

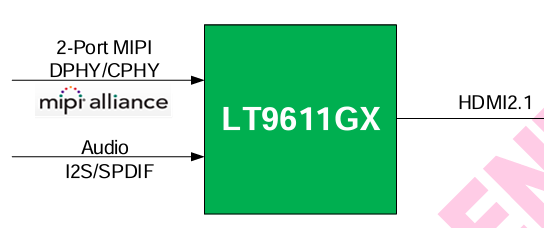

LT9611GX is a high performance Dual-Port MIPI DPHY/CPHY to HDMI2.1 converter.
For MIPI DPHY input, LT9611GX can be configured as 2 Ports and 1/2/4 lanes per port. Up to 12dB equalization makes it suitable for long distance application and the maximum bandwidth is up to 36Gbps.
For MIPI CPHY input, LT9611GX has 6 data lanes up to 3.5Gsps per data lane, it can be configured as 1/2/3/4 ports. The maximum equalization is 12dB and the maximum bandwidth is up to 47.88Gbps.
For HDMI2.1 output, LT9611GX can be configured as 3/4 lanes. The maximum bandwidth is up to 48Gbps. It allow for the highest resolutions of 8K@30Hz or 8K@60Hz with compression data.
Two digital audio input interfaces are available, I2S or SPDIF. The I2S interface supports 8-ch LPCM and the SPDIF interface supports 2-ch LPCM or compressed audio, both at maximum 192 KHz sample rate.
The device is capable of automatic operation which is enabled by an integrated microprocessor that uses an embedded SPI flash for firmware storage. System control is also available through the configuration I2C slave interface.

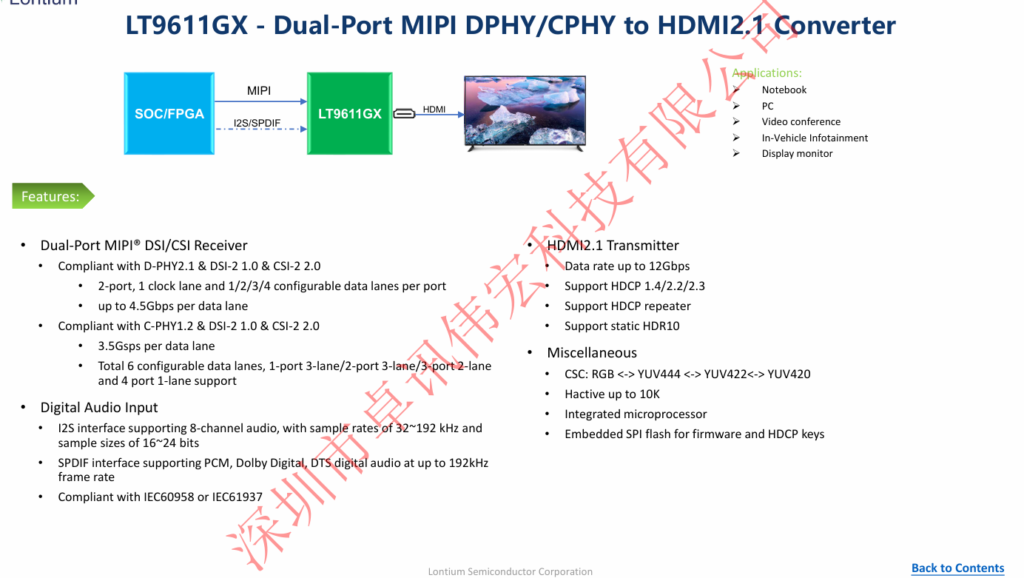

2. Features
• Dual-Port MIPI DSI/CSI Receiver
• Digital Audio Input
• HDMI2.0 Transmitter
• Miscellaneous
3. Applications
• Notebook
• PC
• Video conference
• ln-Vehicle infotainment
• Display monitor
